Title

## GPU Computing

https://github.com/JuliaGPU

```julia
using Plots, BenchmarkTools, FFTW, LinearAlgebra
```

### Advection equation for a rotation in two dimensional domain

$$
 \\frac{d f}{dt} +  (y \\frac{d f}{dx} - x \\frac{d f}{dy}) = 0
$$

$x \in [-π, π], y \in [-π, π]$ and  $t \in [0, 200π]$

---

```julia
struct Mesh

nx   :: Int64
    ny   :: Int64
    x    :: Vector{Float64}
    y    :: Vector{Float64}
    kx   :: Vector{Float64}
    ky   :: Vector{Float64}

function Mesh( xmin, xmax, nx, ymin, ymax, ny)
        # periodic boundary condition, we remove the end point.
        x = range(xmin, stop=xmax, length=nx+1)[1:end-1]
        y = range(ymin, stop=ymax, length=ny+1)[1:end-1]
        kx  = 2π ./ (xmax-xmin) .* [0:nx÷2-1;nx÷2-nx:-1]
        ky  = 2π ./ (ymax-ymin) .* [0:ny÷2-1;ny÷2-ny:-1]
        new( nx, ny, x, y, kx, ky)
    end
end
```

---

```julia
function exact(time, mesh :: Mesh; shift=1.0)

f = zeros(Float64,(mesh.nx, mesh.ny))
    for (i, x) in enumerate(mesh.x), (j, y) in enumerate(mesh.y)
        xn = cos(time)*x - sin(time)*y
        yn = sin(time)*x + cos(time)*y
        f[i,j] = exp(-(xn-shift)*(xn-shift)/0.1)*exp(-(yn-shift)*(yn-shift)/0.1)
    end

f
end
```

```
exact (generic function with 1 method)
```

---

```julia
function animation( tf, nt)

mesh = Mesh( -π, π, 64, -π, π, 64)
    dt = tf / nt
    t = 0
    anim = @animate for n=1:nt

f = exact(t, mesh)
       t += dt
       p = contour(mesh.x, mesh.y, f, axis=[], framestyle=:none)
       plot!(p[1]; clims=(0.,1.), aspect_ratio=:equal, colorbar=false, show=false)
       plot!(sqrt(2) .* cos.(-pi:0.1:pi+0.1),
             sqrt(2) .* sin.(-pi:0.1:pi+0.1), label="", show=false)
       xlims!(-π,π)
       ylims!(-π,π)

end

anim

end
```

```
animation (generic function with 1 method)
```

---

```julia

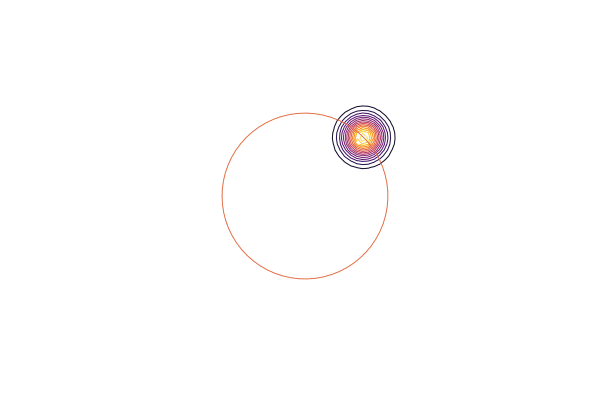

anim = animation( 2π, 100)
gif(anim, "rotation2d.gif", fps = 20)
```

```
┌ Info: Saved animation to
└   fn = "/home/pnavaro/Numkin2019/docs/03/build/rotation2d.gif"
```

![](rotation2d.gif)

---

```julia
function rotation_on_cpu( mesh :: Mesh, nt :: Int64, tf :: Float64)

dt = tf / nt

f   = zeros(ComplexF64,(mesh.nx,mesh.ny))
    f  .= exact( 0.0, mesh )

exky = exp.( 1im*tan(dt/2) .* mesh.x  .* mesh.ky')
    ekxy = exp.(-1im*sin(dt)   .* mesh.y' .* mesh.kx )

for n = 1:nt

fft!(f, 2)
        f .= exky .* f
        ifft!(f,2)

fft!(f, 1)
        f .= ekxy .* f
        ifft!(f, 1)

fft!(f, 2)
        f .= exky .* f
        ifft!(f, 2)

end

real(f)

end
```

```
rotation_on_cpu (generic function with 1 method)
```

---

```julia
mesh = Mesh( -π, π, 1024, -π, π, 1024)
nt, tf = 100, 20.
rotation_on_cpu(mesh, 1, 0.1) # trigger building
etime = @time norm( rotation_on_cpu(mesh, nt, tf) .- exact( tf, mesh))
println(etime)
```

```
 17.410709 seconds (480.51 k allocations: 103.667 MiB, 0.64% gc time)
4.322852262251016e-12
```

---

```julia
using Pkg

GPU_ENABLED = haskey(Pkg.installed(), "CUDAdrv")

if GPU_ENABLED

using CUDAdrv, CuArrays, CuArrays.CUFFT

println(CUDAdrv.name(CuDevice(0)))

end
```

```
Tesla K20m
```

---

```julia
if GPU_ENABLED

function rotation_on_gpu( mesh :: Mesh, nt :: Int64, tf :: Float64)

dt  = tf / nt
        f   = zeros(ComplexF64,(mesh.nx, mesh.ny))
        f  .= exact( 0.0, mesh)

d_f    = CuArray(f) # allocate f on GPU

p_x    = plan_fft!(d_f,  [1]) # Create fft plans on GPU
        pinv_x = plan_ifft!(d_f, [1])
        p_y    = plan_fft!(d_f,  [2])
        pinv_y = plan_ifft!(d_f, [2])

d_exky = CuArray(exp.( 1im*tan(dt/2) .* mesh.x  .* mesh.ky'))
        d_ekxy = CuArray(exp.(-1im*sin(dt)   .* mesh.y' .* mesh.kx ))

for n = 1:nt

p_y * d_f
            d_f .*= d_exky
            pinv_y * d_f

p_x * d_f
            d_f .*= d_ekxy
            pinv_x * d_f

p_y * d_f
            d_f .*= d_exky
            pinv_y * d_f

end

f .= collect(d_f) # Transfer f from GPU to CPU
        real(f)

end

end
```

```
rotation_on_gpu (generic function with 1 method)
```

---

```julia
if GPU_ENABLED

nt, tf = 100, 20.
    rotation_on_gpu(mesh, 1, 0.1)
    etime = @time norm( rotation_on_gpu(mesh, nt, tf) .- exact( tf, mesh))
    println(etime)

end
```

```
  1.350597 seconds (259.94 k allocations: 205.619 MiB, 19.18% gc time)
4.684258104699243e-12
```
